Real-Time Streaming Protocol (RTSP) was one of the favorite video technologies in the streaming world before RTMP which is not supported anymore and the HTML5 protocols that are currently breakthrough technology in the streaming world.

RTSP is still one of the most preferred protocols for IP cameras. It also remains the standard in many surveillance and closed-circuit television (CCTV) architectures.

In this blog post, we will dive into the RTSP protocol in detail. You’ll find an answer to the question of what RTSP is and how it works. Also, you will be able to compare other protocols to RTSP and find the best alternative to the RTSP streaming protocol.

Table of Contents

What is a Streaming Protocol?

what is a protocol?

So, what is a streaming protocol? A streaming protocol is a standardized method of transmitting video or audio streaming content between devices over the internet.

A video streaming protocol sends “chunks” of video or audio content from one device to another device. The method of converting these “chunks” into replayable content on the player device is called the “reassembling” method.

For a successful process, the end device must support the protocol used by the sender. Otherwise, it will not be possible to play the broadcast.

What is RTSP?

what is RTSP

Let’s find out what RTSP is from IETF!

“The Real-Time Streaming Protocol (RTSP) establishes and controls either a single or several time-synchronized streams of continuous media such as audio and video. It does not typically deliver the continuous streams itself, although interleaving of the continuous media stream with the control stream is possible In other words, RTSP acts as a “network remote control” for multimedia servers.”

Internet Engineering Task Force explains RTSP like this:

When a user starts a video stream from an IP camera using RTSP, the device sends an RTSP request to the streaming server. After the setup between IP camera and server is completed, video and audio data can be transmitted using RTP.

RTSP Technical Specifications

  • Audio Codecs: AAC, AAC-LC, HE-AAC+ v1 & v2, MP3, Speex, Opus, Vorbis
  • Video Codecs: H.265 (preview), H.264, VP9, VP8
  • Playback Compatibility: Not widely supported and rarely used for playback (Quicktime Player and other RTSP/RTP-compliant players, VideoLAN VLC media player, 3Gpp-compatible mobile devices)
  • Benefits: Low-latency and ubiquitous in IP cameras
  • Drawbacks: Not optimized for quality of experience and scalability
  • Latency: 2 seconds
  • Variant Formats: The entire stack of RTP, RTCP (Real-Time Control Protocol), and RTSP is often referred to as RTSP

The History of RTSP Streaming

RTSP streaming has been used for quite a long time. A partnership between RealNetworks, Netscape, and Columbia University first developed and delivered the protocol in 1996-97. RTSP protocol was developed through hands-on experience of streaming practice with RealNetworks’ RealAudio and Netscape’s LiveMedia. Its main purpose is “VCR-like control” over media streams. VCR-like control is the ability to play, pause, rewind, and otherwise direct the viewing experience. It was pretty cool in the late ’90s, even if it doesn’t sound interesting right now.

RTSP was standardized in 1998 as RFC 2326 and immediately became useful as a way for users to play audio and video directly from the internet without downloading the files to their device first. People really liked it!

It was built on existing standards of the time, resembling HTTP in operation (therefore easily compatible with existing HTTP networks), and was able to use SDP (Session Description Protocol) for multimedia communication sessions.

It is an application layer protocol that communicates with a media server to create a session and send commands such as “Pause” and “Play” rather than transmitting actual streaming data. Traditionally, most RTSP servers use RTP (Real-Time Transport Protocol) and RTCP (Real-Time Control Protocol) to transmit media streams.

As I said above, RTSP was once one of the leading streaming technologies for internet audio and video streaming. Over time, HTTP-based streaming technologies and adaptive bitrate streaming solutions began to eclipse the old technologies such as RTSP and RTMP (R.I.P). Original authors Anup Rao, Rob Lanphier, and others proposed an RTSP version 2.0 in 2016, with updates intended to shorten round trip communications with the media server and address some issues with network address translation (NAT).

It also remains the protocol of choice for IP cameras, which are used in a majority of surveillance, CCTV, and conference video technologies all of which might be used as a source for the live broadcast.

How Does RTSP Work?

How does rtsp work

RTSP is conceptually similar to HTTP in function and was easily compatible with existing HTTP networks when it was first developed.

It was described as a “network remote control” for media servers. It was designed to control the streams without downloading any files. When a video stream is started, a device using the protocol sends an RTSP request to the media server that initiates the setup process.

RTSP also supports several control request operations (also known as “commands”) such as play, pause, setup, etc. (I will give you some example requests in the following section.) The first request must also inform the client about the available options via the “OPTIONS” command. After that, a user can watch, or turn off the stream. RTSP maintains an end-to-end connection with TCP and achieves a high throughput over this stable connection without requiring any local download or caching.

The protocol does not support content encryption or retransmission of lost packets, as RTSP is connected to a dedicated server for streaming and relies on RTP to transmit real media. These limitations along with scaling problems led to a drop in overall RTSP usage.

RTSP Requests

When negotiating and controlling media streams, RTSP usually uses the following commands usually sent from the client to the server:

  • Options: This request determines what other types of requests the media server will accept.
  • Describe: A description request identifies the URL and type of data.
  • Announce: The announce method describes the presentation when sent from the client to the server and updates the description when sent from server to client.
  • Setup: Setup requests specify how a media stream must be transported before a play request is sent.
  • Play: A play request starts the media transmission by telling the server to start sending the data.
  • Pause: Pause requests temporarily halt the stream delivery.
  • Record: A record request initiates a media recording.
  • Teardown: This request terminates the session entirely and stops all media streams.
  • Redirect: Redirect requests inform the client that it must connect to another server by providing a new URL for the client to issue requests to.

There are also other types of RTSP requests such as ‘get parameter,’ ‘set parameter,’ and ’embedded (interleaved) binary data. You can find more information here.

Alternative to RTSP for First-Mile Delivery – Ingesting

Now let’s switch gears and learn about the other protocols that can be alternatives to RTSP. The critical point here is that each protocol has its own unique purpose, features, and way of working. So the “best streaming protocol” completely for each case depends on the usage scenario. After this section, you will be able to choose the best alternative to the RTSP streaming protocol for your needs and use case.

RTSP vs RTMP

rtmp vs rtsp

RTMP streaming protocol, Transmission Control Protocol-based technology, was developed by Macromedia for streaming audio, video, and data over the Internet, between a Flash player and a server. Macromedia was purchased by its rival Adobe Inc. on December 3, 2005. RTMP stands for Real-Time Messaging Protocol and it was once the most popular live-streaming protocol. It can be used for first-mile delivery/ingest but can’t be used for last-mile delivery/play.

RTMP Streaming Protocol Technical Specifications

  • Audio Codecs: AAC, AAC-LC, HE-AAC+ v1 & v2, MP3, Speex
  • Video Codecs: H.264, VP8, VP6, Sorenson Spark®, Screen Video v1 & v2
  • Playback Compatibility: Not widely supported anymore
    • Limited to Flash Player, Adobe AIR, RTMP-compatible players
    • No longer accepted by iOS, Android, most browsers, and most embeddable players
  • Benefits: Low-latency and minimal buffering
  • Drawbacks: Not optimized for quality of experience or scalability
  • Latency: 5 seconds
  • Variant Formats: RTMPT (tunneled through HTTP), RTMPE (encrypted), RTMPTE (tunneled and encrypted), RTMPS (encrypted over SSL), RTMFP (layered over UDP instead of TCP)

RTSP vs WebRTC

Ant Media WebRTC Server

WebRTC stands for web real-time communications. WebRTC is a very exciting, powerful, and highly disruptive cutting-edge technology and streaming protocol.

WebRTC is HTML5 compatible and you can use it to add real-time media communications directly between browser and devices. And you can do that without the need for any prerequisite of plugins to be installed in the browser. WebRTC is progressively becoming supported by all major modern browser vendors including Safari, Google Chrome, Firefox, Opera, and others.

Thanks to WebRTC video streaming technology, you can embed the real-time video directly into your browser-based solution to create an engaging and interactive streaming experience for your audience without worrying about the delay. WebRTC video streaming is just changing the way of engagement in the new normal.

WebRTC Features

RTSP vs HLS

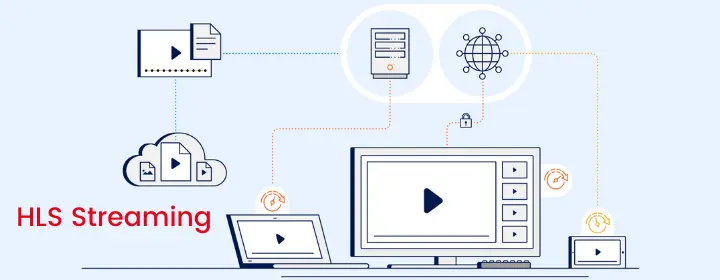

RTSP vs HLS streaming

HLS stands for HTTP Live Streaming. HLS is an adaptive HTTP-based protocol used for transporting video and audio data/content from media servers to the end-user’s device.

HLS was created by Apple in 2009. Apple announced the HLS at about the same time as the legendary device iPhone 3. Earlier generations of iPhone 3 had live streaming playback problems, and Apple wanted to fix this problem with HLS.

Features of HLS video streaming protocol

  • Closed captions
  • Fast forward and rewind
  • Alternate audio and video
  • Fallback alternatives
  • Timed metadata
  • Ad insertion
  • Content protection

HLS Technical Specifications

  • Audio Codecs: AAC-LC, HE-AAC+ v1 & v2, xHE-AAC, Apple Lossless, FLAC
  • Video Codecs: H.265, H.264
  • Playback Compatibility: It was created for iOS devices. But now all Google Chrome browsers; Android, Linux, Microsoft, and macOS devices; several set-top boxes, smart TVs, and other players support HLS. It is now a universal protocol.
  • Benefits: Supports adaptive bitrate, reliable, and widely supported.
  • Drawbacks: Video quality and viewer experience are prioritized over latency.
  • Latency: HLS allows us to have 5-20 seconds latency, but the Low-Latency HLS extension has now been incorporated as a feature set of HLS, promising to deliver sub-2-second latency.

RTSP vs CMAF

rtsp vs cmaf

Common Media Application Format (CMAF) is basically a new format to simplify the delivery of HTTP-based streaming media. It is an emerging standard to help reduce cost, complexity and provide latency around 3-5 secs in streaming.

As a result of the declining status of RTMP, other HTTP-based (Hypertext Transfer Protocol) technologies for adaptive bitrate streaming have emerged. However, different streaming standards require different file containers. Such as while MPEG-DASH uses .mp4 containers, HLS streams are delivered in .ts format.

Therefore, every broadcaster who wants to reach a wider audience must encode and store the same video file twice, because encryption creates completely different groups of files.

These two versions of the same video stream should be made either in advance or instantly. Both of these procedures require additional storage and processing costs.

Apple and Microsoft suggested Moving Pictures Expert Group create a new uniform standard called Common Media Application Format (CMAF) to reduce complexity when transmitting video online.

 Let’s look at what Akamai said about this:

“These same files, although representing the same content, cost twice as much to package, twice as much to store on origin, and compete with each other on Akamai edge caches for space, thereby reducing the efficiency with which they can be delivered.”

The importance of CMAF comes into play here. As a standard streaming format across all platforms, it helps us with single-approach encoding, packaging and storage. Hence, Common Media Application Format makes the video streaming process much cheaper and less complicated.

Advantages of CMAF Streaming

CMAF streaming technology is one of the easiest ways to reduce streaming latency and complexity of streaming. CMAF streaming helps us with;

  • Cutting costs
  • Minimizing workflow complexity
  • Reducing latency

RTSP and IP Camera

ip camera streaming with RTSP

Most IP cameras use the RTSP protocol to capture the broadcast to the media server. IP cameras, which are specially used for surveillance. They also work great when you want to live stream from a fixed location. One of the great things about IP cameras is that they don’t need an extra encoder. When pairing IP cameras with a server, RTSP easily does the job for you.

RTSP Streaming With Ant Media

Ant Media provides ready-to-use, highly scalable real-time video streaming solutions for live video streaming needs. Based on customer requirements and preferences, it enables a live video streaming solution to be deployed easily and quickly on-premises or on public cloud networks such as Alibaba Cloud, AWS, and Azure.

Ant Media Server supports most of the common media streaming protocols like RTMP, HLS, DASH, WebRTC, and of course RTSP. Actually, Ant Media Server is one of the best media servers available in the market that can serve different streaming needs. Ant Media Server provides all of the features listed above.

How to set up an RTSP streaming server for free

Ant Media provides ready-to-use, highly scalable real-time video streaming solutions for live video streaming needs. Based on customer requirements and preferences, it enables a live video streaming solution to be deployed easily and quickly on-premises or on public cloud networks such as Alibaba Cloud, AWS, and Azure.

Ant Media Server supports most of the common media streaming protocols like RTMP, HLS, DASH, WebRTC, and of course RTSP. Actually, Ant Media Server is one of the most used media servers available in the market that can serve different streaming needs.

Ant Media provides 100 hours of free usage for Enterprise Edition every month.

You can set up an RTSP server for free here.

Ant Media Community Edition License for free RTSP server

The biggest benefit you enjoy with Ant Media is our Community Edition license. It is free streaming software. With the Community Edition, you can install RTSP Server easily and you can have an RTSP server for free.

Ant Media Server Community Edition is a free, self-hosted, and self-managed streaming software where you get:

  • Low latency of 8 to 12 seconds
  • RTMP and WebRTC ingesting
  • RTSP, RTMP, and HLS pulling
  • Live playing with HLS and MP4
  • Live recording with MP4
  • VoD and IP Camera capabilities
  • Community support

If you are just starting out with live streaming and looking for a free RTMP server, the Ant Media Community Edition License could be the perfect solution for you. Moreover, it is an open-source RTMP Server.

Who needs the Ant Media Server Enterprise Edition license?

The Enterprise Edition License is also open-source and a paid solution on the cloud or on-prem.

With Enterprise Edition License, you get:

  • Ultra-low end-to-end latency of 0.5 seconds
  • Scalability with cluster support
  • Adaptive Bitrate Streaming
  • Hardware encoding
  • RTMP and WebRTC ingesting
  • Playing with WebRTC, RTMP and HLS
  • Free SDKs for Android and iOS
  • Direct support from Ant Media

If you are a student or a university, you could get Enterprise Edition License for free. Get in touch with us to know more. Also, Ant Media has a special startup program. If you meet the application conditions, apply now.

You can check the community and enterprise edition comparison table here.

How to Set Up a Free RTSP Server in 7 steps

It takes only 7 steps to have an RTSP server free.

1. Download Ant Media Server

Download and save the Ant Media Server Community/Enterprise Edition to your server.

  • Community Edition can be downloaded from here.
  • Enterprise Edition can be downloaded on your account after you get a license on antmedia.io

2. Open Terminal and Go to The Directory

Open a terminal and go to the directory where you have downloaded the Ant Media zip file.

cd path/to/where/ant-media-server....zip

3. Download the Installation Script

Download theinstall_ant-media-server.shshell script

wget https://raw.githubusercontent.com/ant-media/Scripts/master/install_ant-media-server.sh && chmod 755 install_ant-media-server.sh

4. Run the Installation Script

For a clean new installation:

sudo ./install_ant-media-server.sh -i [ANT_MEDIA_SERVER_INSTALLATION_FILE]

For more options you can use sudo ./install_ant-media-server.sh -h

5. Control the Service

You can check the service if it is running.

sudo service antmedia status

You can stop/start the service anytime you want.

sudo service antmedia stop
sudo service antmedia start

6. Install SSL for Your Ant Media Server

If you’re installing on your localhost, you can skip this step.

Please make sure that your server instance has a public IP address and a domain is assigned to its public IP address. Then go to the folder where Ant Media Server is installed. Default directory is/usr/local/antmedia

cd /usr/local/antmedia

Run./enable_ssl.sh script in the AMS installation directory. Don’t forget to replace {DOMAIN_NAME}with your domain name.

sudo ./enable_ssl.sh -d {DOMAIN_NAME}

For detailed information about SSL, follow the SSL Setup guide here.

7. Accessing The Web Panel

Open your browser and typehttp://SERVER_IP_ADDRESS:5080to go to the web panel. If you’re having difficulty accessing the web panel, there may be a firewall that blocks accessing the 5080 port.

That’s all. You now have a free RTSP server if you use the community edition.

RTSP Server Setup Video Tutorial

https://youtu.be/0m27oDIb95s

RTSP FAQ

Yes, RTSP is still one of the most preferred protocols for IP cameras. It also remains the standard in many surveillance and closed-circuit television (CCTV) architectures.

RTSP or Real Time Streaming Protocol is included on almost all IP cameras, NVRs, and DVRs.

You can connect your IP camera to Ant Media Server easily and start streaming. Detailed information.

This quick start guide lets you set up a RTSP server and start streaming in a few minutes of time.
